Brand Name: Elom
Design standard: IEC60034, NEMA, GOST, BS, ANSI,IEEE, VDE, EN
Frame Including: 315,355,400,450,500,560,630,710,800,900,1120
Output Power: 160kW-10000kW 200HP--13500HP
Voltage: 400/690V 3000V, 3300V, 4160V, 6000V, 6600V, 10000V, 11000V, 13800V
Frequency duty: constant speed or inverter duty(Variable speed by VFD)
Protect Feature: IP00, IP23, IP24, IP54, IP55, IP56
Cooling method: IC01,IC06,IC411, IC416, IC511, IC516, IC611, IC616, IC666, IC81W, IC86W, IC37
Mounting type: IMB3, IMB35, IMV1,IM7311
EFF: IE2 IE3 IE4 IE5
Color: blue or as requirement
Insulation class: F or H
Temperature rise: B or F
Accessory: PT100, PTC, PTO, Space heater, SPM vibration sensors
advantage: high efficiency,low noise good quality ,good performance
applications: Pumps, Fans, Blowers, belt conveyor, Crusher, Compressor, Ball mill, steel mill, Rolling mills ,cement mills, converyor belt, crushers, shredder, Rotary kiln, Flying shear, ventilation...

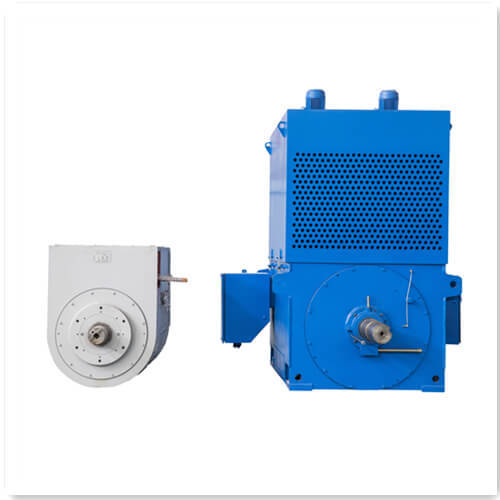

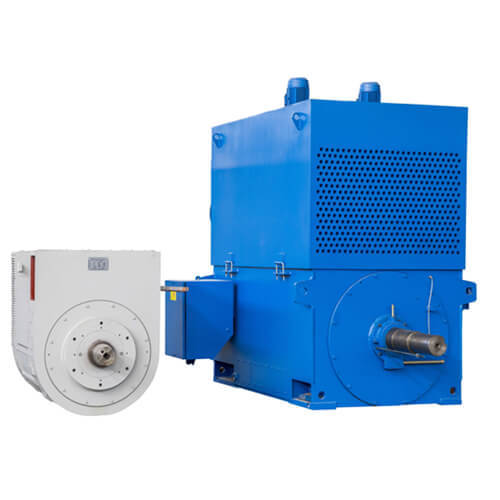

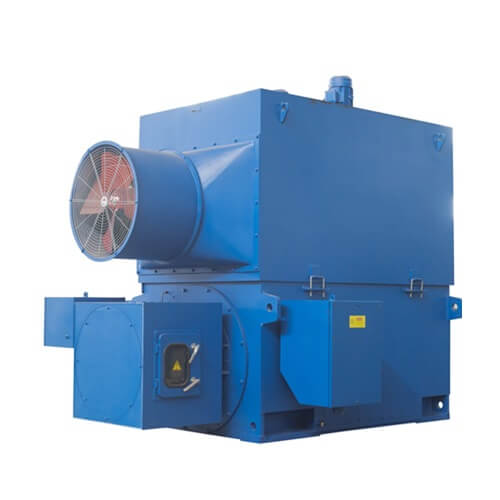

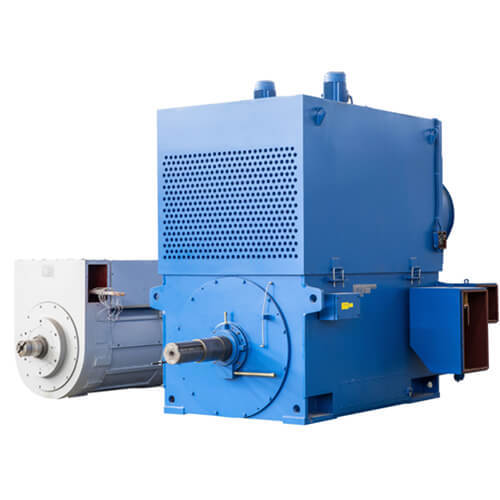

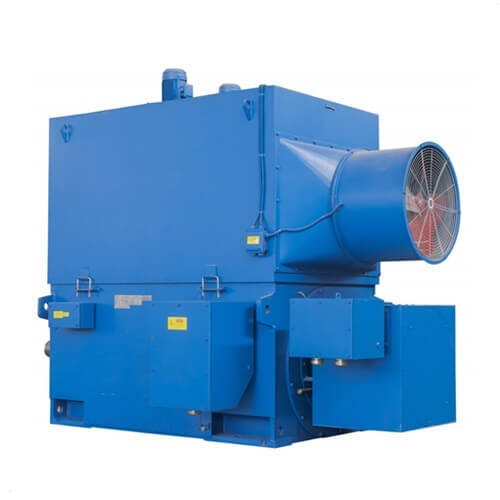

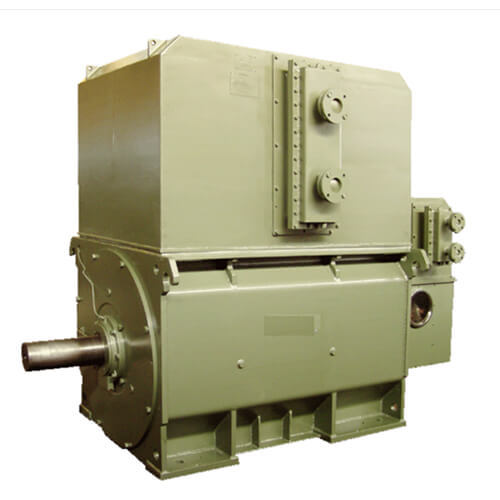

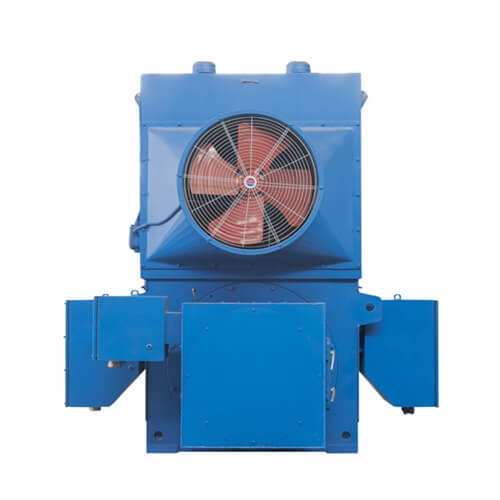

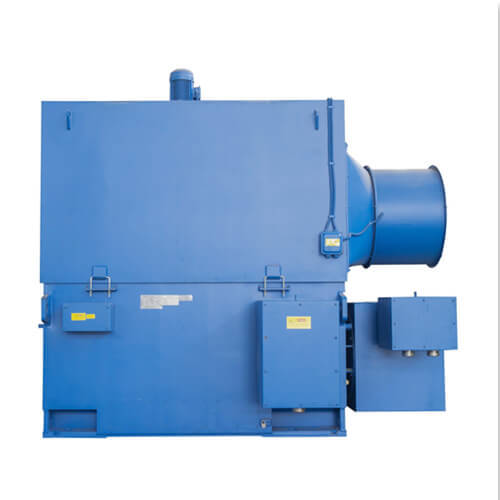

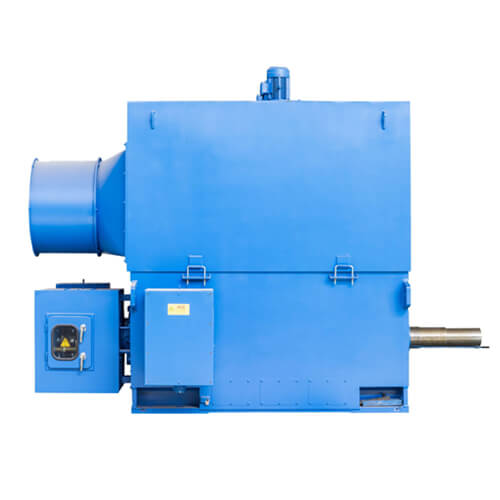

YRKK wound rotor high voltage slip ring motor with carbon brush
YRKK wound rotor high voltage slip ring motor with carbon brush are used in applications requiring high starting torque or low starting current. These motors provide maximum availability, and are especially recommended for heavy load inertia applications like mill drives or situations where network conditions are weak. Slip-ring motors are of modular construction and have a wide range of accessories. Depending on the application many alternative cooling and enclosure types are available.
YRKK motors have a welded steel frame. Slip ring unit can be supplied with permanent contact brushes, or with brush lifting gear. In both cases the slip rings are enclosed in a housing located at the N-end and separated from the main motor frame. Liquid resistance starter(LRS) is available on request. For YRKK motors this catalog only shows the typical technical data of 6kV and 10kV at 50 Hz for 4, 6, and 8 pole motors. While the complete product scope covers motors with 60Hz, pole numbers up to 16, and voltage rating up to 13.8kV. For more detailed technical data and configuration solutions on YRKK slip-ring motors, please contact ELOM
ELOM’s slip-ring motors minimize mechanical stress at starting, increasing the lifetime of your driven equipment. They provide maximized availability and high torque over the entire speed range. Slip-ring motors are widely used in mills, crushers, fans, and conveyors in the mining, cement and metal industries. In addition, these motors offer a reliable solution for pumps in the water industry and safe area pumps, compressors and mixers in the petrochemical industry. YRKK slip ring motors are available in shaft heights from 355 to 1120 mm, with cooling methods and protection types of IC01,IC06,IC411, IC416, IC511, IC516, IC611, IC616, IC666, IC81W, IC86W, IC37 as standard. The motors are rated up to 10,000 kW.
