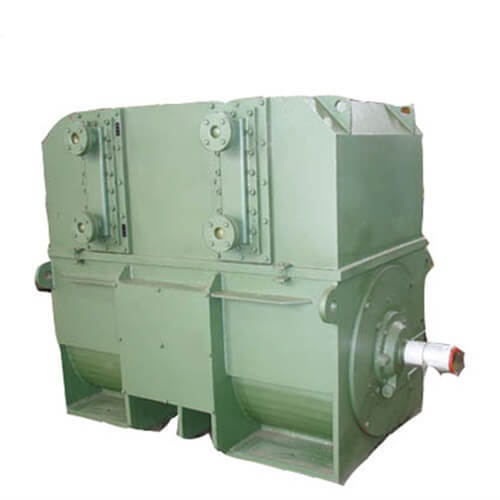

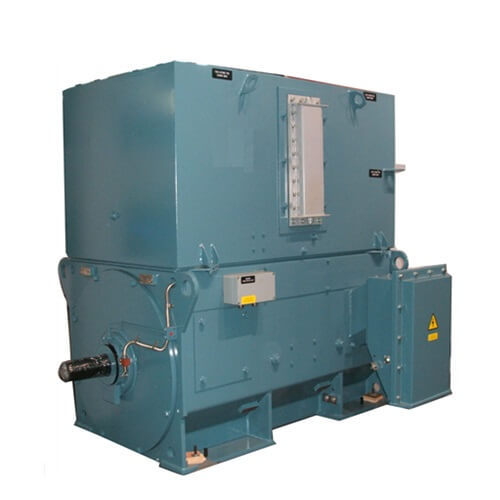

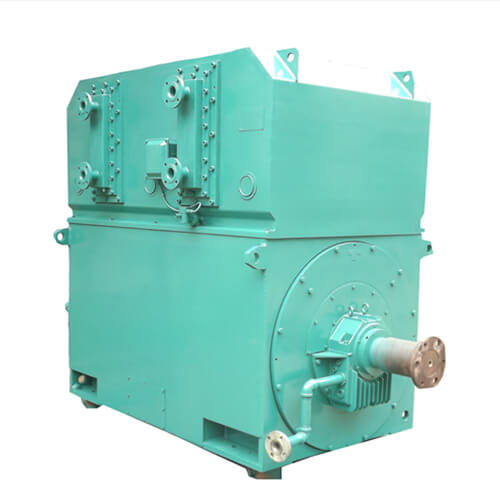

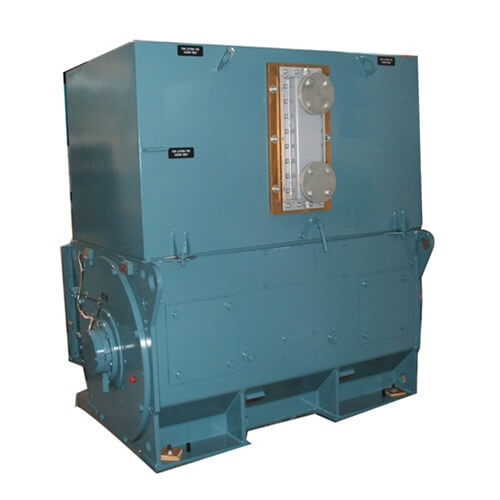

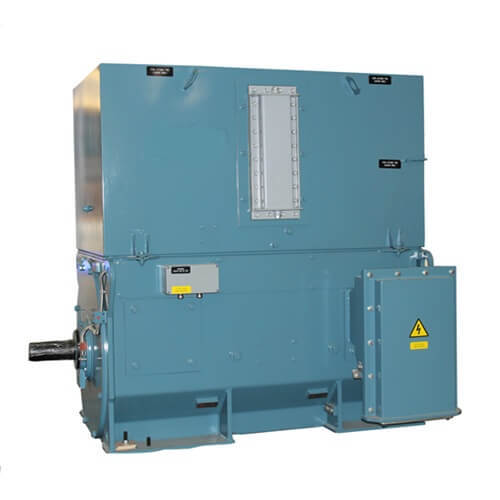

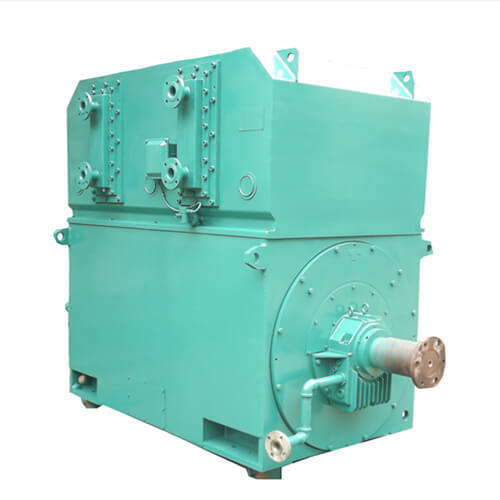

YKS water cooling high voltage motor

ELOM high voltage  induction motors which use steel square structure are with squirrel cage rotor and bar winding, applications: Pumps, Fans, Blowers, belt conveyor, Crusher, Compressor, Ball mill, steel mill, cutting machine.
Description
Description
Products Feature

Brand Name: Elom

Design standard: IEC60034, NEMA ,BS, Gost

Frame Including: 315,355,400,450,500,560,630,710,800,900,1120

Output Power: 160kW-16000kW  200HP--20000HP

Voltage: 400/690V 3000V, 3300V, 4160V, 6000V, 6600V, 10000V, 11000V, 13800V

Frequency: 50Hz 60Hz

Protect Feature: IP54 IP55 IP56 Totally Enclosed (IC81W, IC86W)

Certification: CCC,CE,ROHS,UL,VDE,EAC,ISO9001-2015

EFF: IE2 IE3 IE4

Color: blue or as requirement

Insulation class: F or H

Temperature rise: B or F

Mounting type: IMB3, IMB35, IMV1

Accessory:  PT100, PTC, PTO, Space heater, SPM vibration sensors

advantage: high efficiency,low noise good quality ,good performance

applications: Pumps, Fans, Blowers, belt conveyor, Crusher, Compressor, Ball mill, steel mill, cutting machine......

 YKS series air-water cooling medium and high voltage motor

YKS motors are designed on base standards of IEC 60034 and NEMA MG1 electrical part, having performance characteristics in accordance with requirements of load torque inertia and efficiency. YKS motors have a welded steel frame. They are rated from 160 to 12000 kW, and are available at 50 and 60 Hz in shaft heights from 315 to 1120 mm. The complete range is designed for fixed speed drive applications with DOL power supply, and is available for VFD cases fed by frequency converters The motors are available for horizontal or vertical mounting. Vertical mounting is specifically designed for vertical, condensate and circulating water pumps.

YKS 315-1120 motor has a shaft mounted inside fan (if any) using the surrounding air for cooling. The motor is so designed that the ingress of rain, snow and airborne particles into the electrical parts is reduced. The motor is protected such that splashing water from any direction will have no harmful effect. The standard filter material is galvanized steel. IC611 / IP55 This design has an air-to-air heat exchanger mounted on the motor, which is fully enclosed. Shaft mounted fans are fitted both inside and outside of the casing to supply the inside and outside cooling circuits respectively. The motor is protected against dust and water
