Products Feature
Brand Name: Elom Motor
Design standard: IEC60034, NEMA ,BS, Gost
Frame Including: 400,450,500,560,630,710,800,900
Output Power: 160kW-8000kW 200HP--10000HP
Voltage: 400/690V 3000V, 3300V, 4160V, 6000V, 6600V, 10000V, 11000V, 13800V
Frequency: 50Hz 60Hz
Protect Feature: IP54 IP55 IP56 Totally Enclosed (IC511, IC516)
Certification: CCC,CE,ROHS,UL,VDE,EAC,ISO9001-2015
EFF: IE2 IE3 IE4
Color: blue or as requirement
Insulation class: F or H
Temperature rise: B or F
Mounting type: IMB3, IMB35, IMV1
Accessory: PT100, PTC, PTO, Space heater, SPM vibration sensors
advantage: high efficiency,low noise good quality ,good performance
applications: Pumps, Fans, Blowers, belt conveyor, Crusher, Compressor, Ball mill, steel mill, cutting machine......

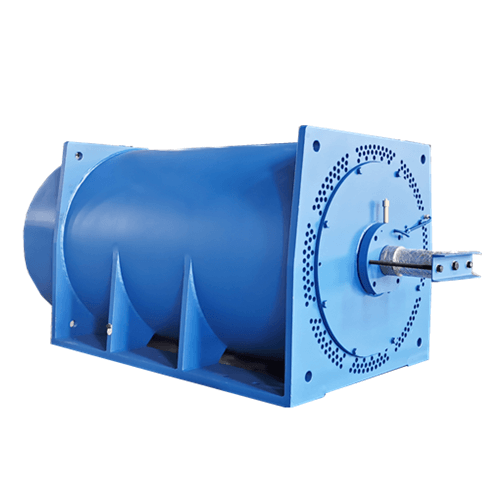

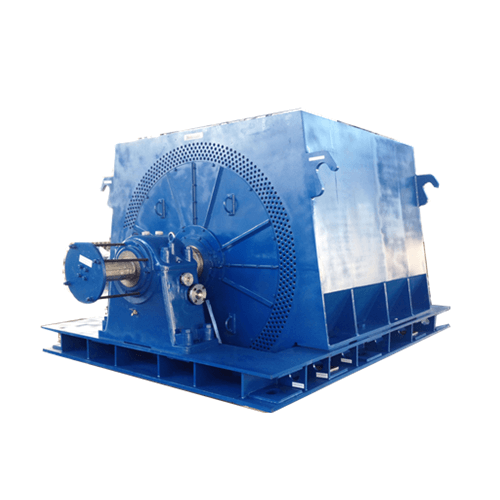

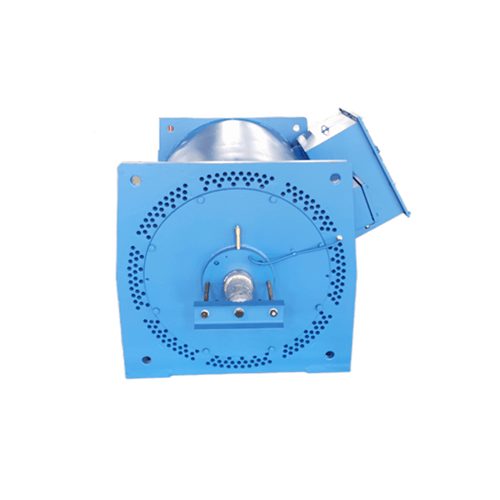

YBKK series medium and high voltage pipe cooling motor
YBKK motors are designed on base standards of IEC 60034 and NEMA MG1 electrical part, having performance characteristics in accordance with requirements of load torque inertia and efficiency. YBKK motors have a welded steel frame. They are rated from 160 to 8000 kW, and are available at 50 and 60 Hz in shaft heights from 315 to 1120 mm. The complete range is designed for fixed speed drive applications with DOL power supply, and is available for VFD cases fed by frequency converters The motors are available for horizontal or vertical mounting. Vertical mounting is specifically designed for vertical, condensate and circulating water pumps.
YBKK 400-900 motor has a shaft mounted inside fan (if any) using the surrounding air for cooling. The motor is so designed that the ingress of rain, snow and airborne particles into the electrical parts is reduced. The motor is protected such that splashing water from any direction will have no harmful effect. The standard filter material is galvanized steel. IC511 IP55 This design has an air-to-air heat exchanger mounted on the motor, which is fully enclosed. Shaft mounted fans are fitted both inside and outside of the casing to supply the inside and outside cooling circuits respectively. The motor is protected against dust and splashing water from any direction.
