Brand Name: Elom
Design standard: IEC60034, NEMA, GOST, BS, ANSI,IEEE, VDE, EN
Frame Including: 315,355,400,450,500,560,630
Output Power: 160kW-3200kW 200HP--4300HP
Voltage: 400/690V 3000V, 3300V, 4160V, 6000V, 6600V, 10000V, 11000V, 13800V
Frequency duty: constant speed or inverter duty(Variable speed by VFD)
Protect Feature:IP54, IP55, IP56
Cooling method: IC411, IC416
Mounting type: IMB3, IMB35, IMV1
EFF: IE2 IE3 IE4 IE5
Color: blue or as requirement
Insulation class: F or H
Temperature rise: B or F
Accessory: PT100, PTC, PTO, Space heater, SPM vibration sensors
advantage: high efficiency,low noise good quality ,good performance
applications: Pumps, Fans, Blowers, belt conveyor, Crusher, Compressor, Ball mill, steel mill, Rolling mills ,cement mills, converyor belt, crushers, shredder, Rotary kiln, Flying shear, ventilation...

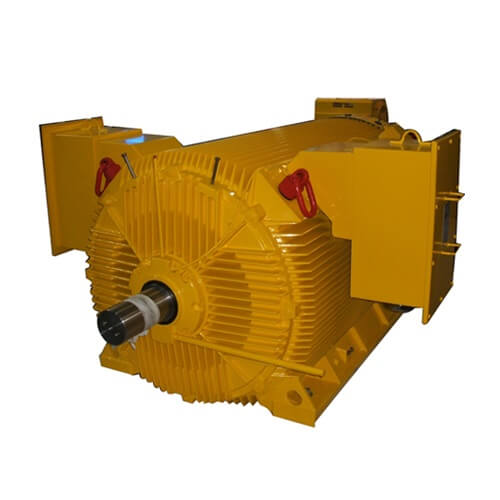

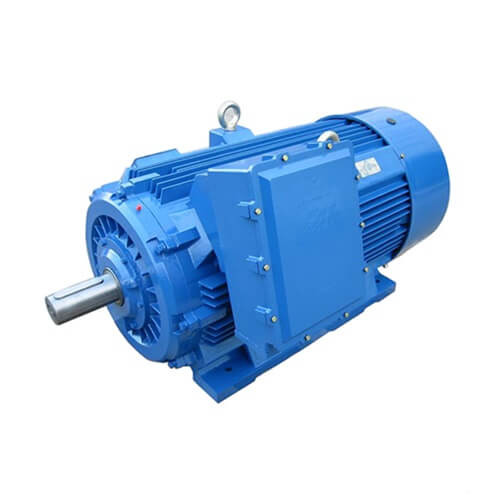

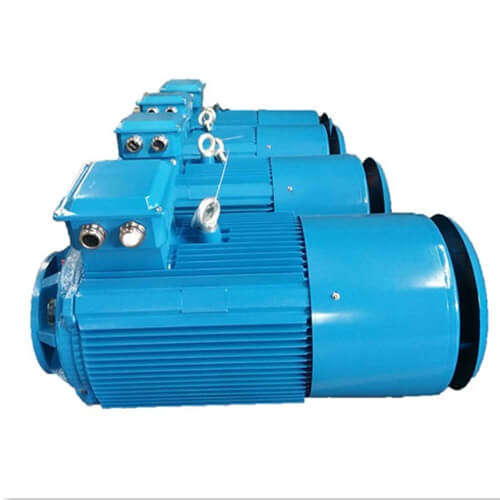

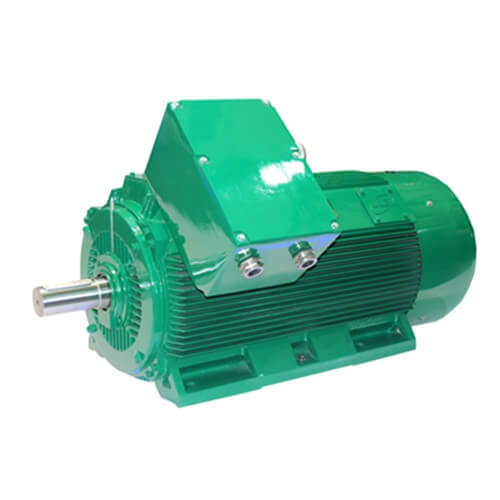

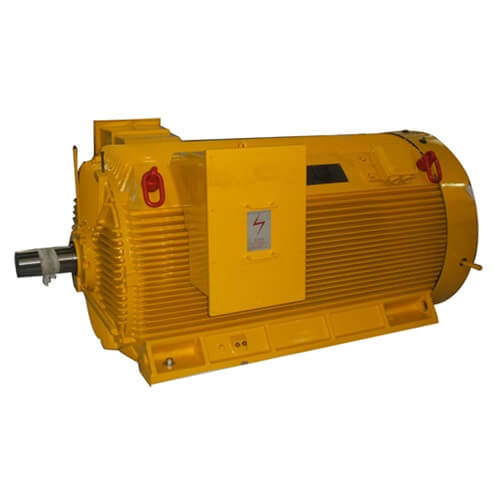

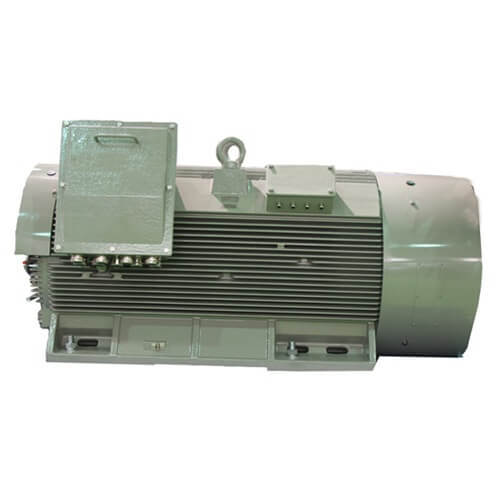

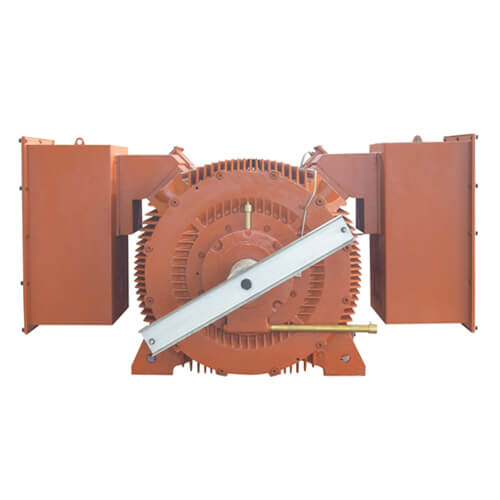

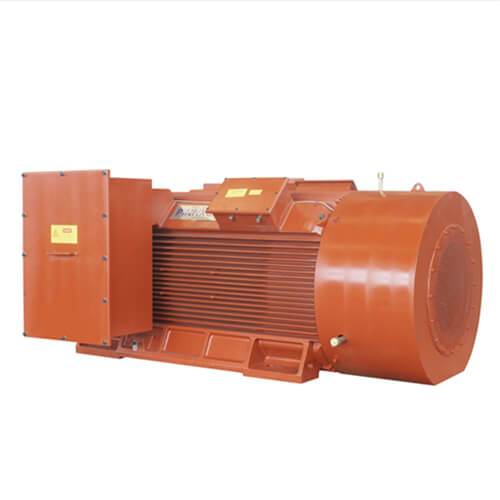

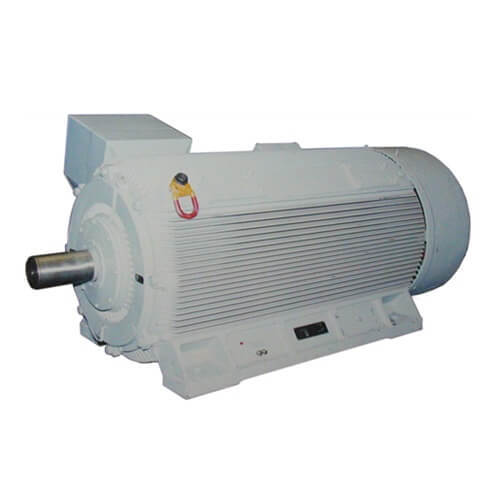

Y2PT rib cooling variable frequency high voltage cast iron motors offering more density power than has ever been achieved before.is often use a motor one frame size smaller than other standard products. This helps to save space and enables more compact installations. Y2PT variable friendcy compact motors have a rugged cast iron frame. They are rib cooled motors with IC411 cooling and IP55 protection as standard. The motors are also available with IC416 cooling and optional IP66 protection.
Y2PT compact vfd high voltage motors cover the output range up to 3200 kW, and they are available in shaft heights from 315 to 630 mm. The motors can be mounted horizontally vertical mounting available for 2 poles up to shaft height 355). for Y2pt variable frequency motors echnical data at 50 Hz and 60 Hz, and for synchronous speed from 500 to 3600 rpmare extremely efficient, even at partial load, and they have low noise levels. Y2pt variable frequency vfd motors are always engineered according to customers' requirements. Losses are minimized by optimized stator, rotor and fan design.
Protection rating IP55
• Protection against dust: as in other dustprotected motors, some dust can enter but not in sufficient quantities to interfere with the motor's operation.
• Protection against water jets: water projected by a nozzle against the motor from any direction has no harmful effect.Protection rating IP66 AXR motors are available with protection ratings up to IP66.
