Products Feature
Brand Name: Elom
Design standard: IEC60034, NEMA ,BS, Gost
Frame Including: 315,355,400,450,500,560,630,710,800,900,1120
Output Power: 160kW-16000kW 200HP--21000HP
Voltage: 400/690V 3000V, 3300V, 4160V, 6000V, 6600V, 10000V, 11000V, 13800V
Frequency: 3-50Hz 60Hz 50-100hz
Protect Feature:IP23, IP24, IP54, IP55, IP56
Coiling method: IC06, IC416, IC516, IC616, IC666, IC81W
Mounting type: IMB3, IMB35, IMV1,IM7311
Certification: CCC,CE,ROHS,UL,VDE,EAC,ISO9001-2015
EFF: IE2 IE3 IE4
Color: blue or as requirement
Insulation class: F or H
Temperature rise: B or F
Accessory: PT100, PTC, PTO, Space heater, SPM vibration sensors
advantage: high efficiency,low noise good quality ,good performance
applications: Pumps, Fans, Blowers, belt conveyor, Crusher, Compressor, Ball mill, steel mill, cutting machine......

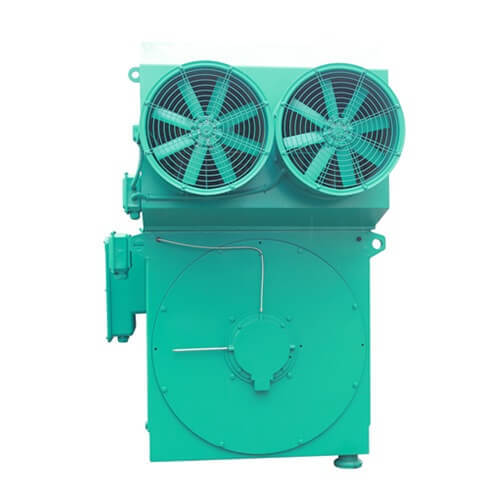

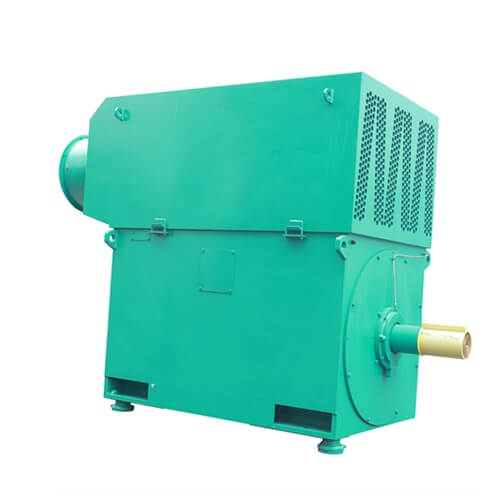

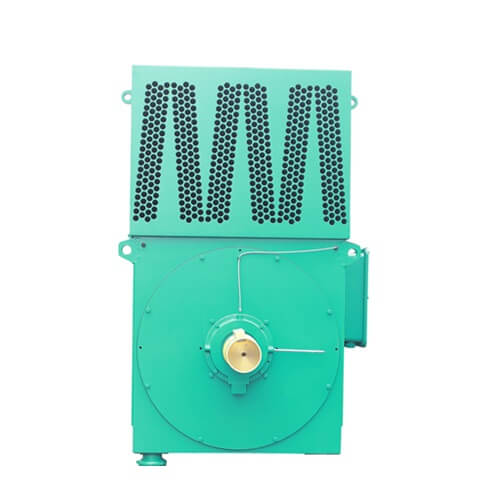

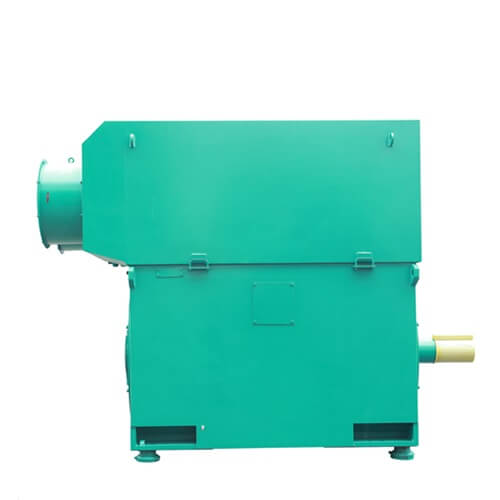

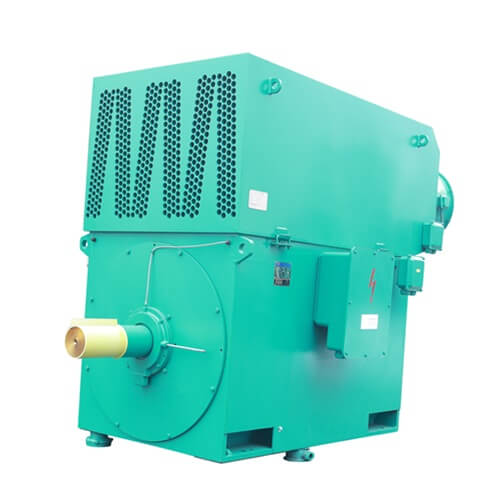

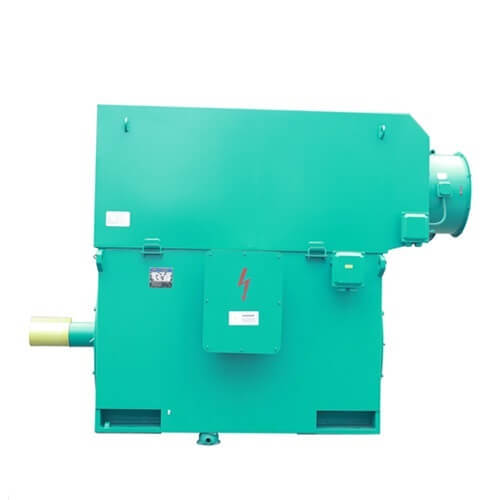

YPKK series variable frequency VFD electric ac motor
YPKK squirrel cage high voltage vfd motors are designed on base standards of IEC 60034 and NEMA MG1 electrical part, having performance characteristics in accordance with requirements of load torque inertia and efficiency. YPKK motors have a welded steel frame. They are rated from 160 to 16000 kW, and are available at 50 and 60 Hz in shaft heights from 315 to 1120 mm. The complete range is designed for fixed speed drive applications with DOL power supply, and is available for VFD cases fed by frequency converters The motors are available for horizontal or vertical mounting. Vertical mounting is specifically designed for vertical, condensate and circulating water pumps.
IC01 / IP24, YPKK 315-1120
The motor has a shaft mounted inside fan (if any) using the surrounding air for cooling. The motor is so designed that the ingress of rain, snow and airborne particles into the electrical parts is reduced. The motor is protected such that splashing water from any direction will have no harmful effect. The standard filter material is galvanized steel.
