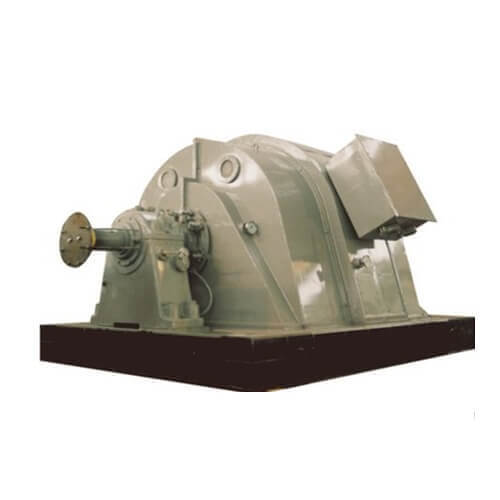

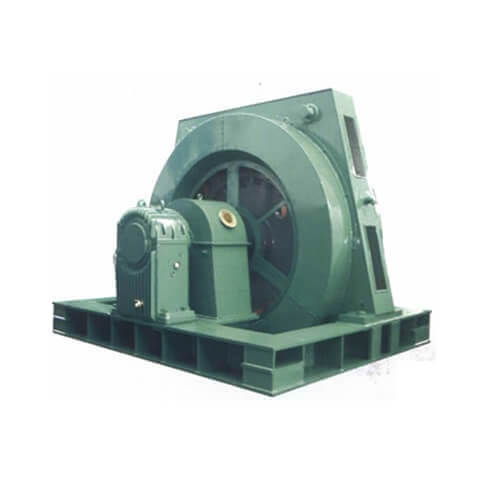

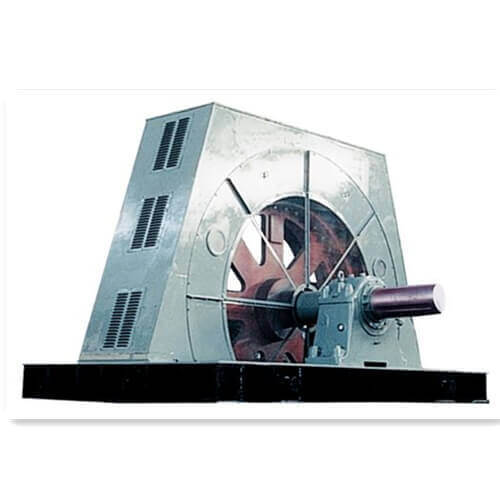

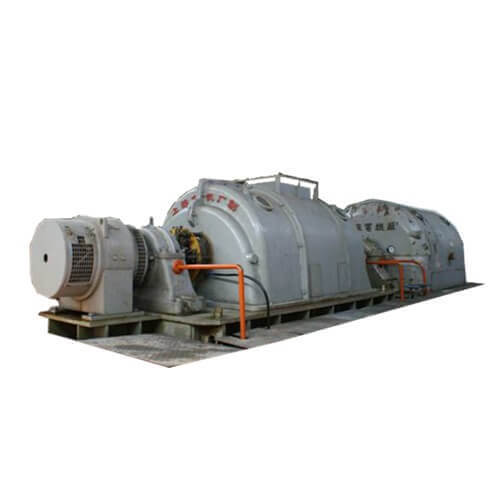

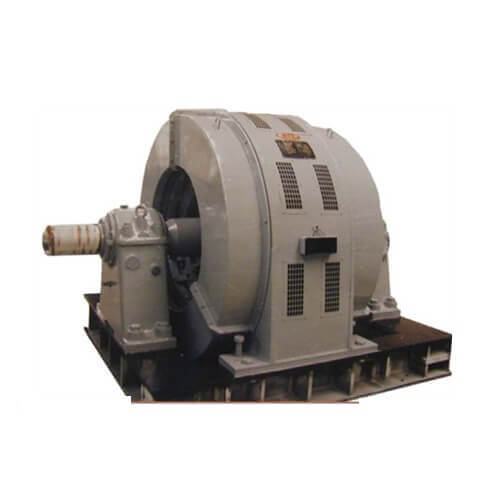

TK high speed HV synchronous Motor

ELOM high voltage synchronous motors are efficiency and perfect performance for the applications industry Oil, gas and petrochemical, Marine and offshore,  Metals and minerals, water treatment and  Air separation to drive pumps, fans, mills, compressors.
Description
Description

Product Feature

Brand Name: Elom

Design standard: IEC60034, NEMA, GOST, BS, ANSI,IEEE, VDE, EN,CSA, UL

Output Power: 160kW-15MW

Pole: 4p-40P

Voltage: 400/690V 3000V, 3300V, 4160V, 6000V, 6600V, 10000V, 11000V, 13800V

Frequency duty: constant speed or inverter duty(Variable speed by VFD)

Protect Feature: IP00, IP23, IP54, IP55, IP56

Cooling method:  IC411, IC416, IC511, IC516, IC611, IC616, IC666, IC81W, IC86W

Mounting type: IMB3, IMB35, IMV1, IM7311

Certification: CCC,CE,ROHS,UL,VDE,EAC,ISO9001-2015, ATEX, IECEX

EFF: IE2 IE3 IE4

Color: blue or as requirement

Insulation class: F or H

Temperature rise: B or F

Accessory:  PT100, PTC, PTO, Space heater, SPM vibration sensors

advantage: high efficiency,low noise good quality ,good performance

applications: Hazardous environment to drive Pumps, Fans, Blowers, belt conveyor, Crusher, Compressor, Ball mill, steel mill, Rolling mills ,cement mills, converyor belt, crushers, shredder, Rotary kiln, Flying shear, ventilation...

TK high speed high voltage synchronous Motor

ELOM high voltage synchronous motors are our new design products, they are  high efficiency and perfect performance,it was proved to be reliable to match diffrent industry clients needs. the applications where our motors are operating include:

• Oil, gas and petrochemical: compressors, pumps, fans and extruders

• Marine and offshore: variable speed motors in azimuthing propulsors and shaft line applications

• Metals and minerals: rolling mills, hoists, processing lines, semi-autogenous grinding (SAG) mills, ball mills and blowers

• Power utilities: pumps, fans and condensers

• Pulp and paper: chippers, refiners and grinders

• Water treatment: pumps

• Air separation: compressors

• applications: wind tunnel motors and motor-generator sets

The motor can be design to constant speed and variable speed for diffrent useage.

constant speed motors

constant speed synchronous motors are specially used in applications like compressors,ventinations, fans, pumps, wood grinders and refiners. The most commonly used starting methods for fixed speed synchronous motors are direct-online (DOL), reactor, autotransformer, load commutated inverter (LCI, 'soft starter'), excitation pannel.

Variable speed motors

Variable speed synchronous motors are often used for applications in process industries and in applications where variable speed delivers clear benefits. Rolling mills, mine hoists, pumps and compressors are typical examples of variable speed applications. Synchronous motors with variable speed drives (VSDs) are also commonly used in the main propulsion system in ships. Optimized electrical drive systems with variable speed motors can also provide considerable energy savings in applications like extruders, compressors and pumps.

ELOM motor designs are always optimized for the type of converter that is most suitable for the application. Our motors can be combined with all common converter types: load commutated inverter (LCI), cycloconverter (C) and voltage source inverter (VSI)

Synchronous motors are typically preferred solution when higher power and torque are required. In addition to their high power capabilities, synchronous motors offer the benefits of high efficiency, high performance and an adjustable power factor.
