Brand Name: Elom
Design standard: IEC60034, NEMA, GOST, BS, ANSI,IEEE, VDE, EN，CSA, UL
Output Power: 160kW-15MW
Voltage: 400/690V 3000V, 3300V, 4160V, 6000V, 6600V, 10000V, 11000V, 13800V
Frequency duty: constant speed or inverter duty(Variable speed by VFD)
Protect Feature: IP00, IP23, IP54, IP55, IP56
Cooling method: IC411, IC416, IC511, IC516, IC611, IC616, IC666, IC81W, IC86W,IC37
Mounting type: IMB3, IMB35, IMV1, IM7311
Certification: CCC,CE,ROHS,UL,VDE,EAC,ISO9001-2015, ATEX, IECEX
EFF: IE2 IE3 IE4
Color: blue or as requirement
Insulation class: F or H
Temperature rise: B or F
Accessory: PT100, PTC, PTO, Space heater, SPM vibration sensors
advantage: high efficiency,low noise good quality ,good performance
applications: Hazardous environment to drive Pumps, Fans, Blowers, belt conveyor, Crusher, Compressor, Ball mill, steel mill, Rolling mills ,cement mills, converyor belt, crushers, shredder, Rotary kiln, Flying shear, ventilation...

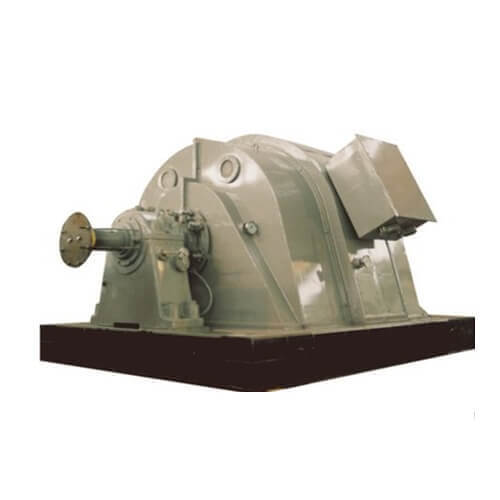

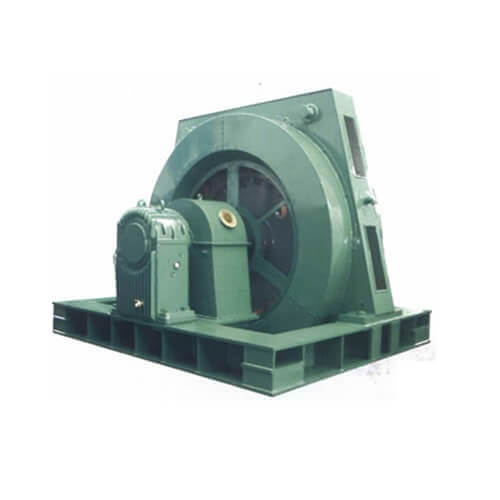

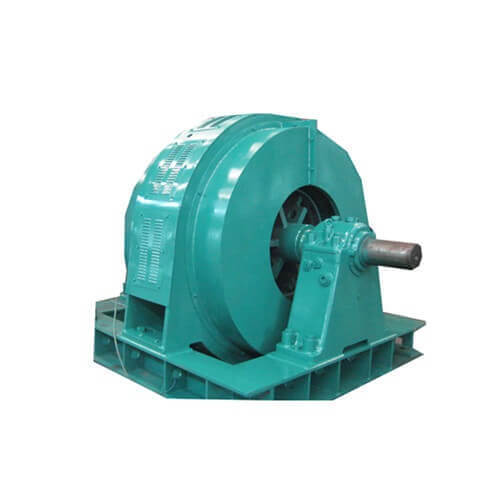

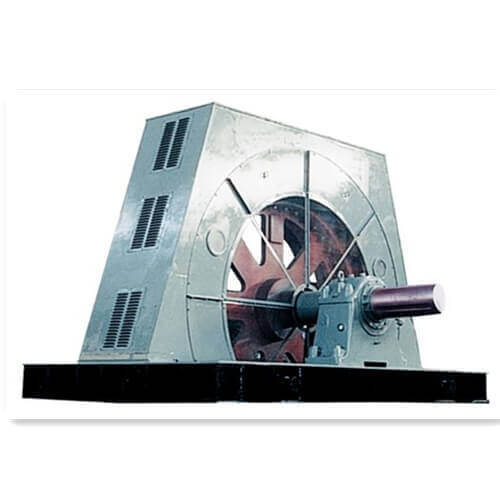

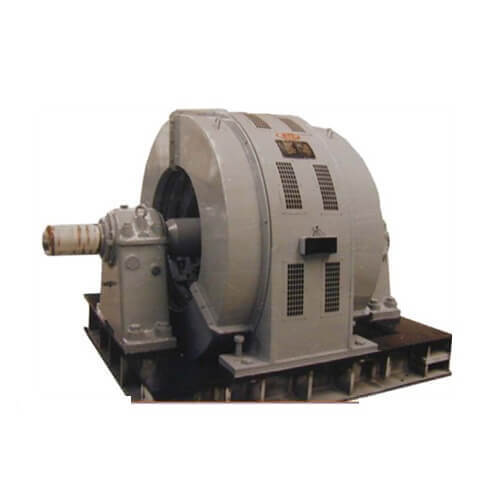

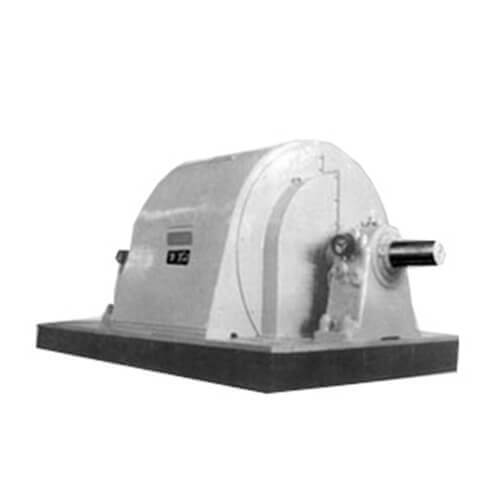

TDMK high voltage synchronous ball mill Motor
TDMK high voltage synchronous ball mill Motor are design with high starting torque, high inertia requirement, is our new design products, they are high efficiency and perfect performance,they are proved to be reliable to match diffrent industry clients needs. the applications where our motors are operating include:
• Oil, gas and petrochemical: compressors, pumps, fans and extruders
• Marine and offshore: variable speed motors in azimuthing propulsors and shaft line applications
• Metals and minerals: rolling mills, hoists, processing lines, semi-autogenous grinding (SAG) mills, ball mills and blowers
• Power utilities: pumps, fans and condensers
• Pulp and paper: chippers, refiners and grinders
• Water treatment: pumps
• Air separation: compressors
• applications: wind tunnel motors and motor-generator sets
The motor can be design to constant speed and variable speed for diffrent useage.
constant speed motors
constant speed synchronous motors are specially used in applications like compressors,ventinations, fans, pumps, wood grinders and refiners. The most commonly used starting methods for fixed speed synchronous motors are direct-online (DOL), reactor, autotransformer, load commutated inverter (LCI, 'soft starter'), excitation pannel.
Variable speed motors
Variable speed synchronous motors are often used for applications in process industries and in applications where variable speed delivers clear benefits. Rolling mills, mine hoists, pumps and compressors are typical examples of variable speed applications. Synchronous motors with variable speed drives (VSDs) are also commonly used in the main propulsion system in ships. Optimized electrical drive systems with variable speed motors can also provide considerable energy savings in applications like extruders, compressors and pumps.
ELOM motor designs are always optimized for the type of converter that is most suitable for the application. Our motors can be combined with all common converter types: load commutated inverter (LCI), cycloconverter (C) and voltage source inverter (VSI)
Synchronous motors are typically preferred solution when higher power and torque are required. In addition to their high power capabilities, synchronous motors offer the benefits of high efficiency, high performance and an adjustable power factor.
